My new drill press

I finally assembled my new drill press that I bought a couple of months ago.  All the cool woodworkers have one so I figured that I should pick one up too.  I waited until they went on sale at Harbor Freight and then used my 20% off coupon and got it for under $60.  It’s not the best reviewed one out there but all I want to do is drill some straight holes in wood so I think that I will be fine.  I specifically bought the one with a chuck key.  I read a lot of reviews saying the one with a keyless chuck always seemed to fail over time.  I’ve never actually used a drill press before so this is all one big adventure.

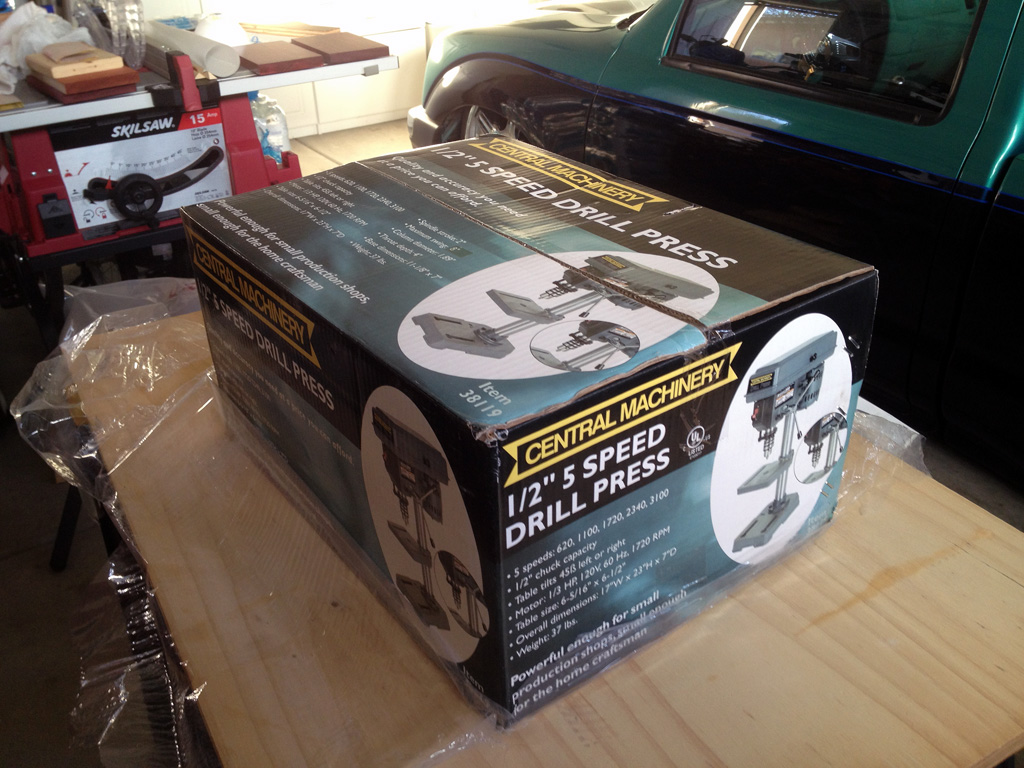

 New in the box
Still in the box

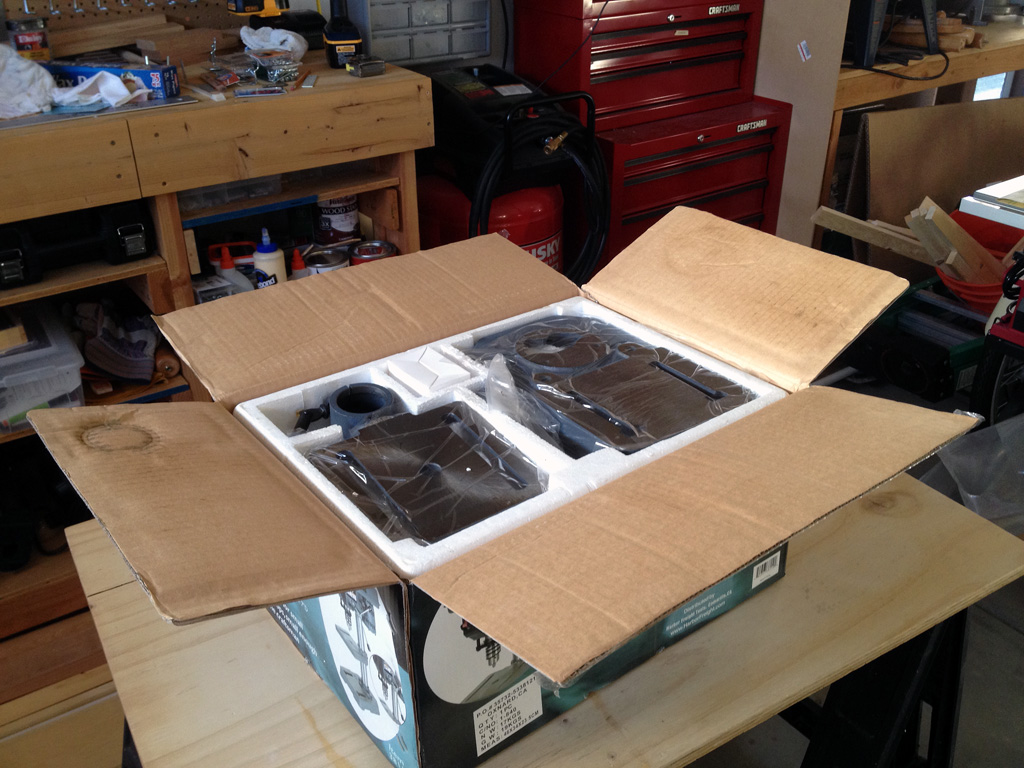

Kinda out of the box
Out of the box
I bolted the column assembly to the base
I then slid the table down over the column
I put the motor assembly on top and tightened the 2 allen screws on the side
 I nstalled the 3 feed handles next

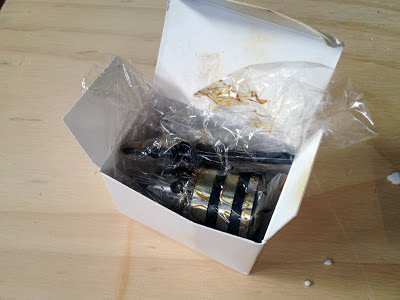

The chuck came covered in grease

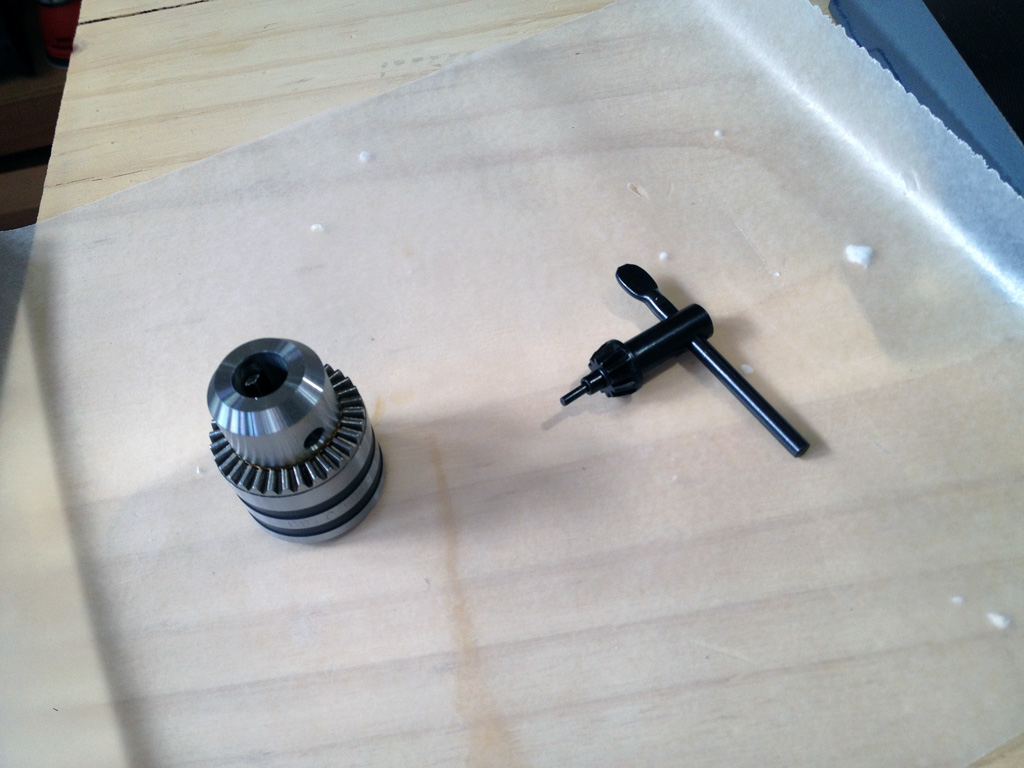

So I cleaned it and the key

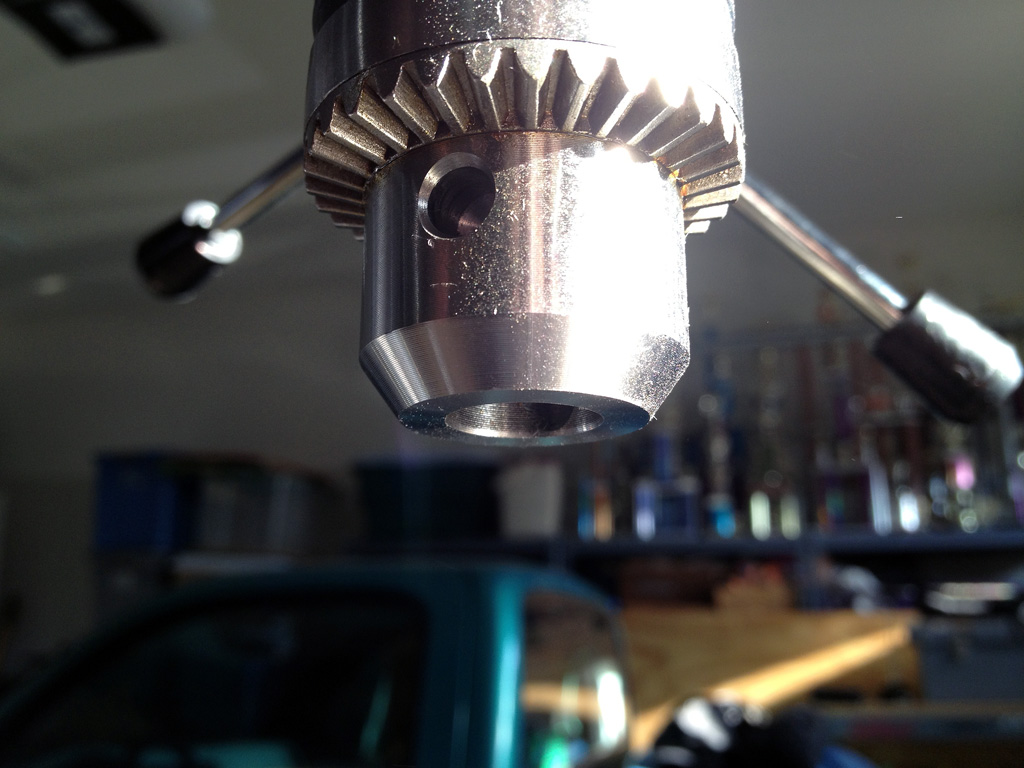

I retracted the jaws all the way inside the key and slid it over the spindle

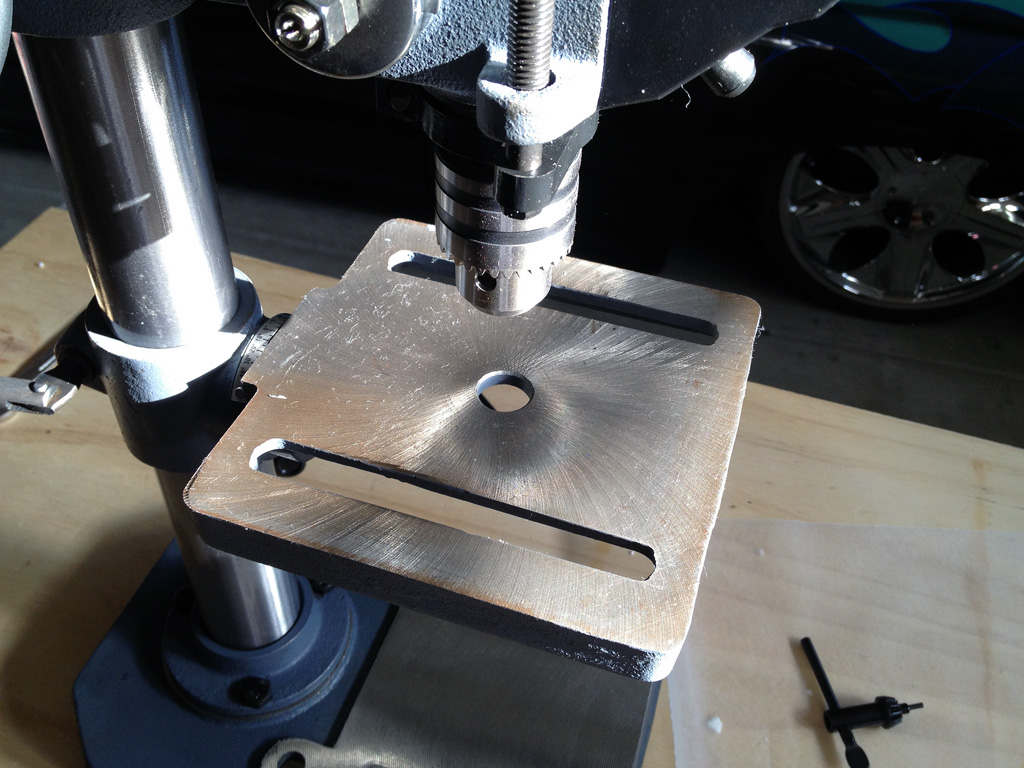

I lifted the table and put a piece of scrap wood on it (not pictured) and then
pulled down on the feed handles to force the chuck onto the spindle
It felt like I was going to break something when I pulled on the handles so the chuck
didn’t seem to go as far on the spindle as I would have liked

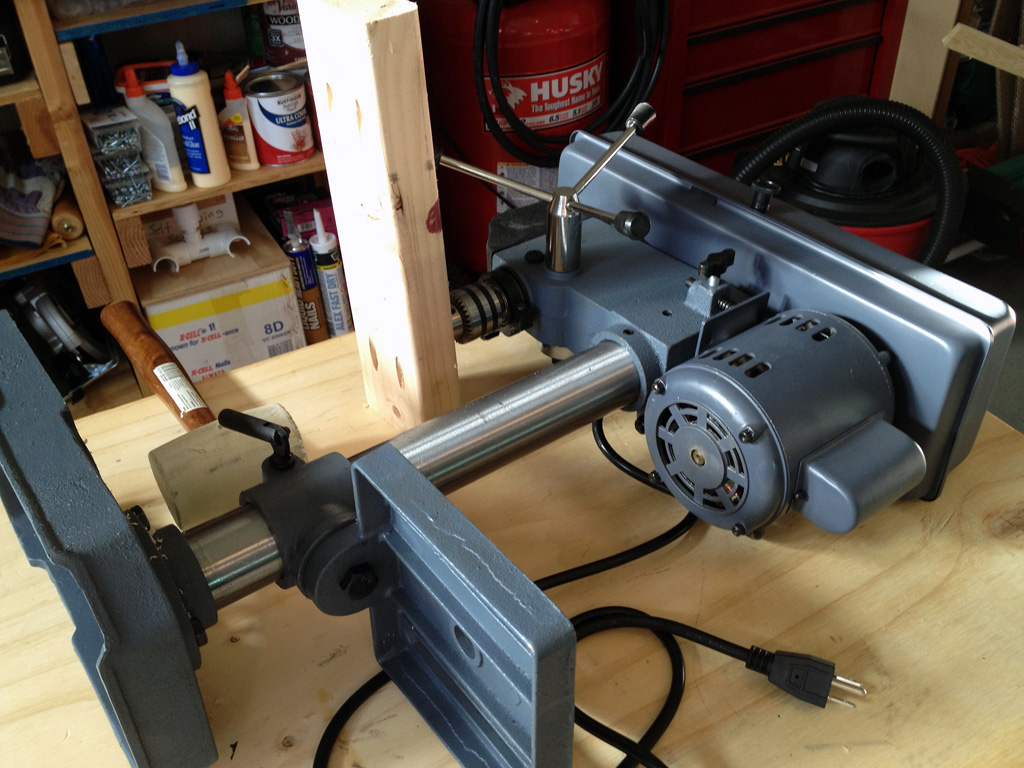

So I layed it on it’s side, placed the scrap wood next to the chuck,and gave it a
couple of good whacks

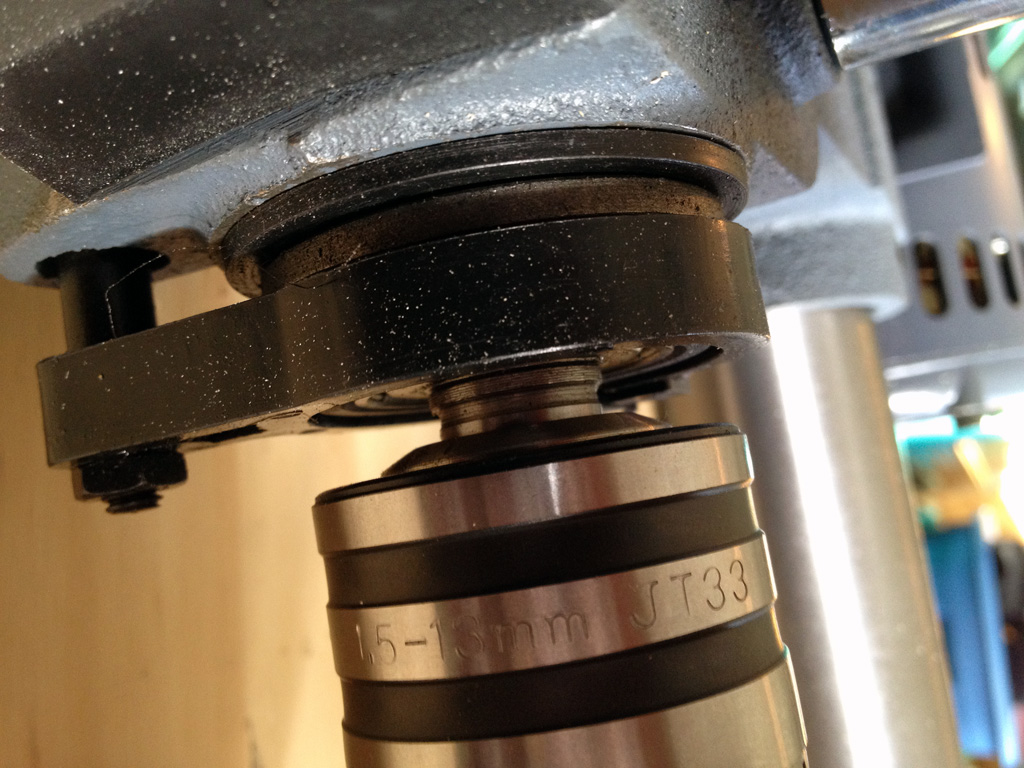

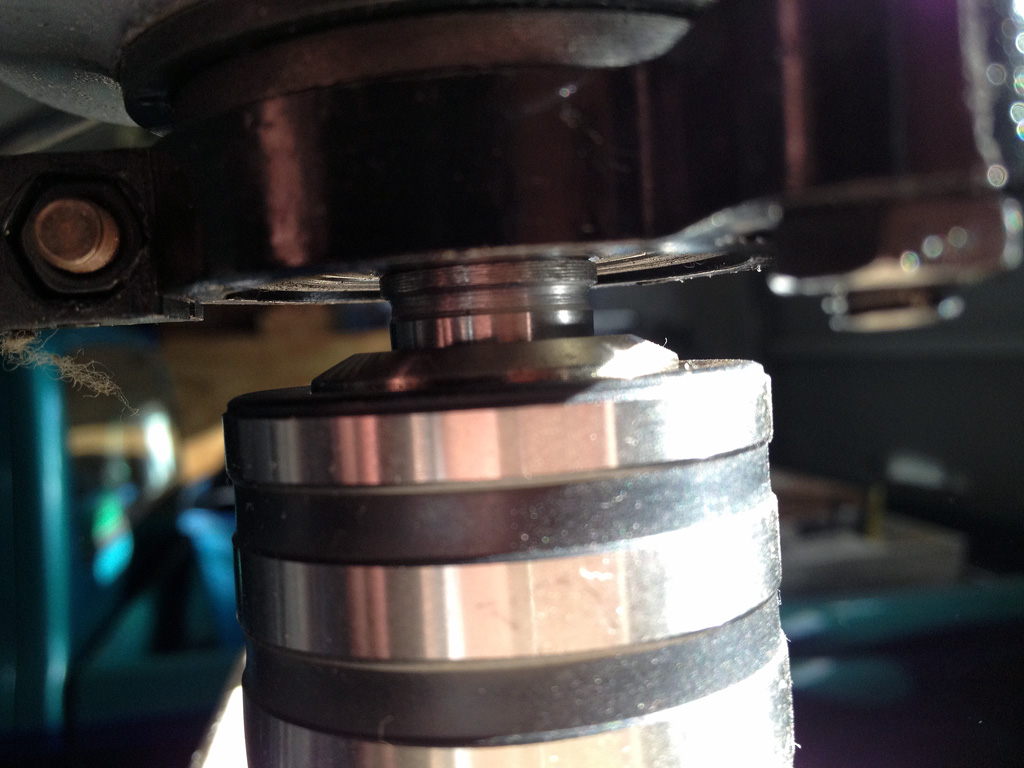

It went on a little tighter that way.  From looking at the spindle assembly I still feel
like it should have gone up more

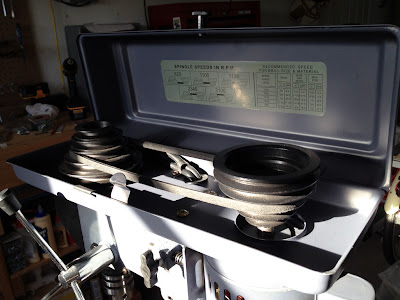

It was set to the highest speed so I moved the belt to the middle.  It has a handy chart
attached to the inside of the lid showing where to put the belt for the different speeds
and belt placements

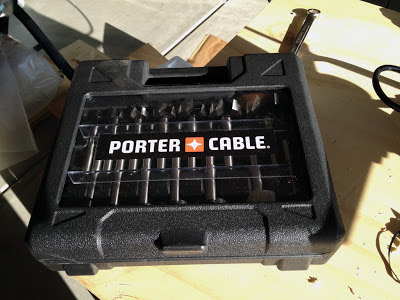

I live close to a Home Depot but the Ryobi Forstner bits had a lot of reviews saying that
they were dull so I drove to Lowes and picked up som Porter Cable bits.  They cost almost as
much as the drill press.

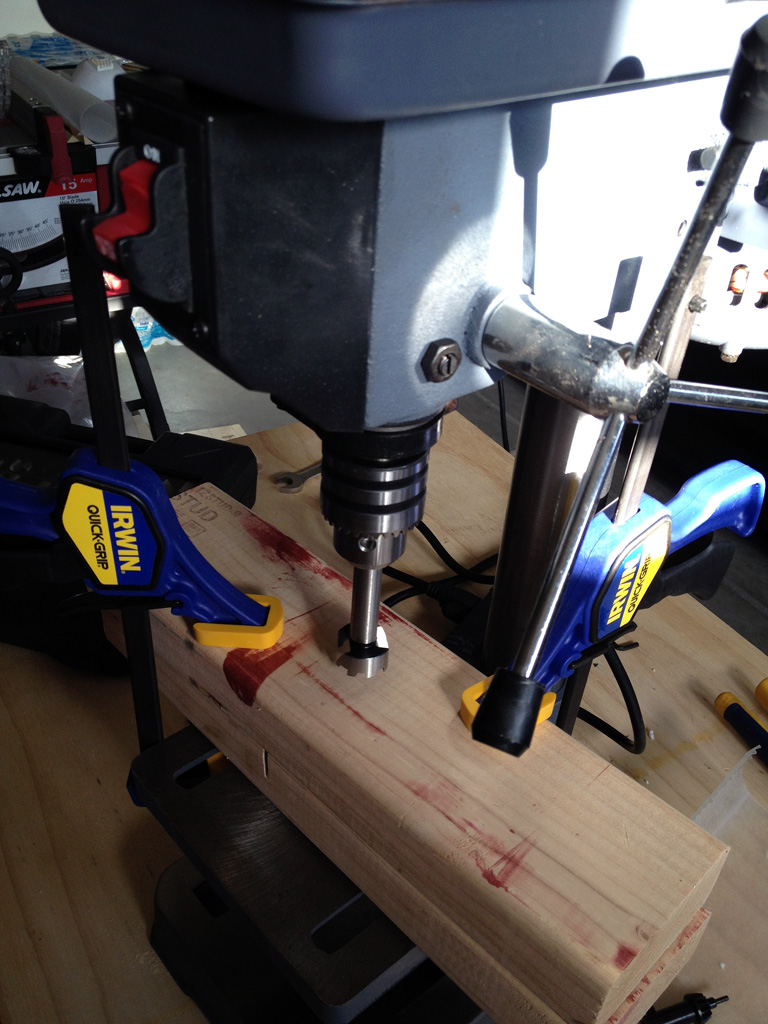

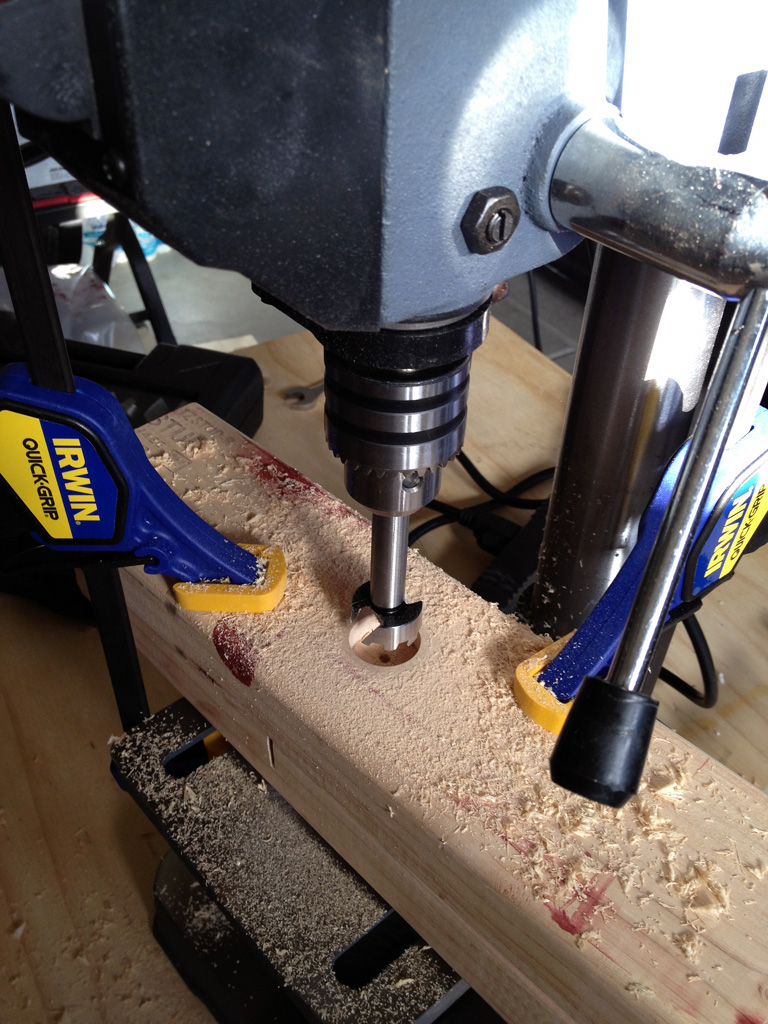

I ran a test and the chuck didn’t look like it was wobbling at all

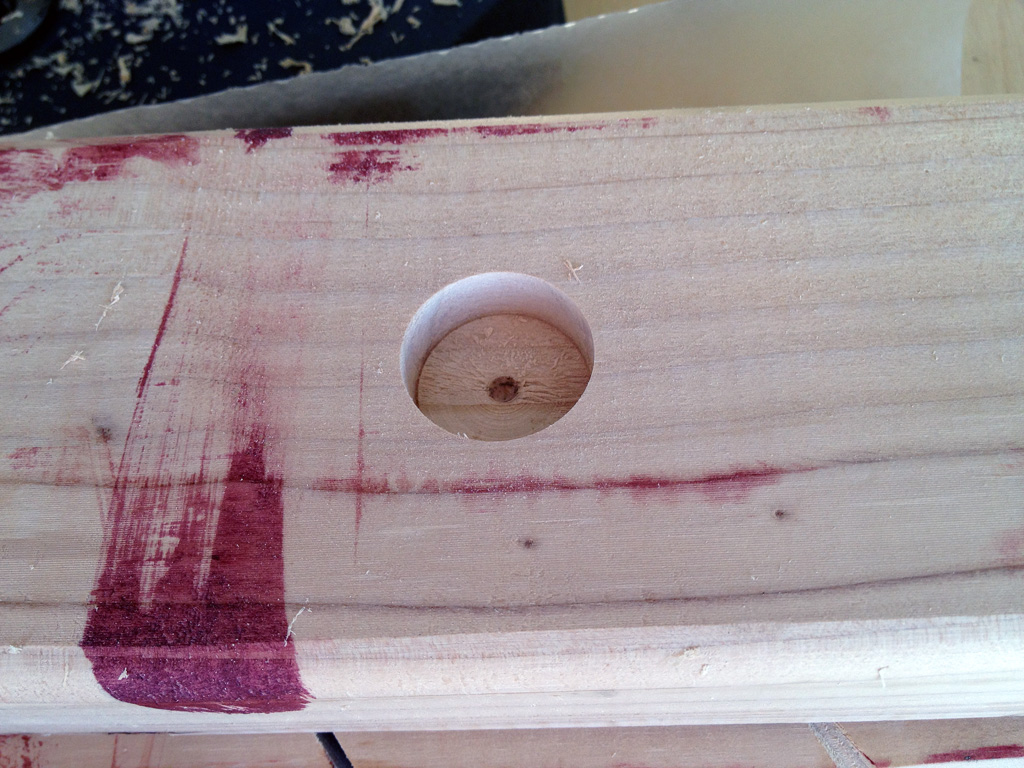

I was kinda surprised at just how much sawdust this little hole halfway through
a 2×4 made
It looks good to me.  Now I can make the woodworking mallet from
WoodWorking for Mere Mortals.
