Project – CNC Superman logos

We recently had my son’s birthday party and he wanted a Superman theme so I decided to make some Superman logos.  5 smaller ones to give out as prizes and 1 big one to hang in his room.

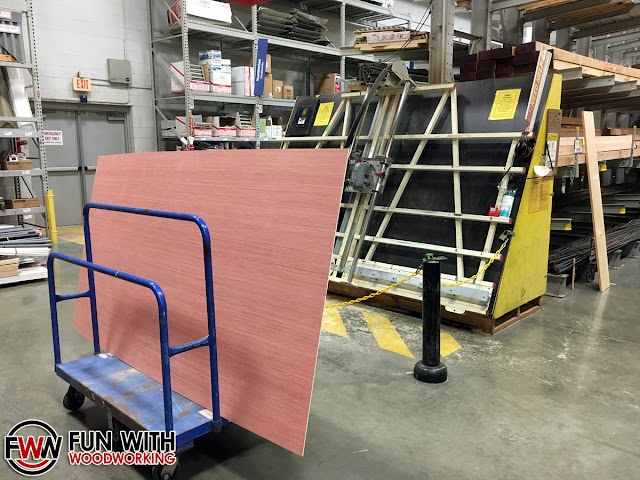

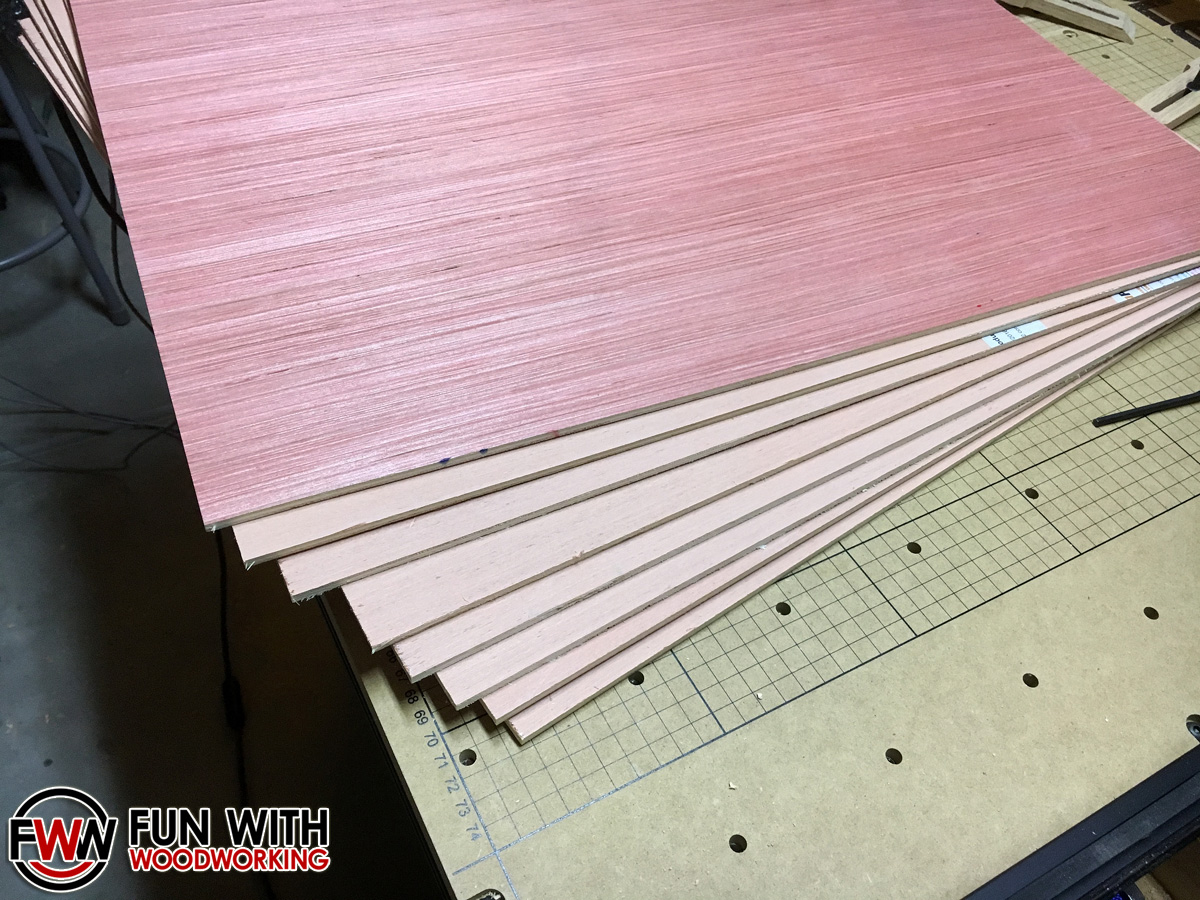

I checked the prices at my local Lowes and it was around $8 for a 2′ x 2′ x 1/4″ plywood panel.  I checked the full sheet plywood area and found a 4′ x 8′ x 1/4″ sheet for just under $16.  I had them cut the sheet down the middle on the 4′ length, then stack the 2 pieces together, and cut those in half.  This left me with 4 – 2′ x 4′ pieces.  I took those home and cut them in half so that I ended up with 8 – 2′ x 2′ panels.

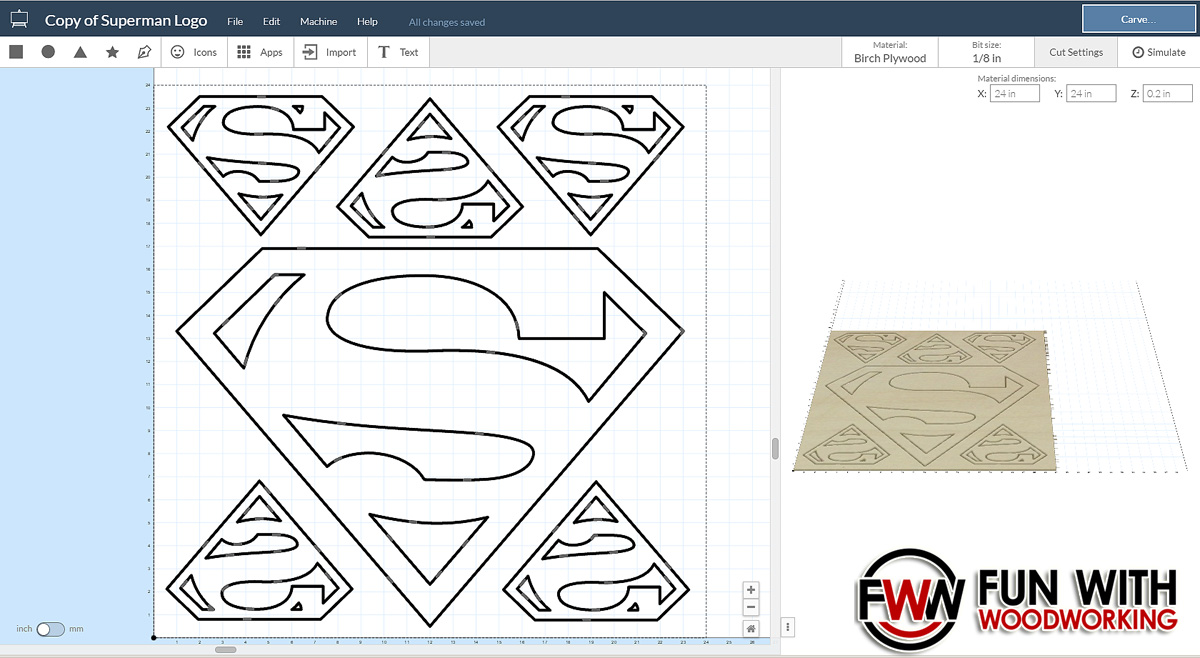

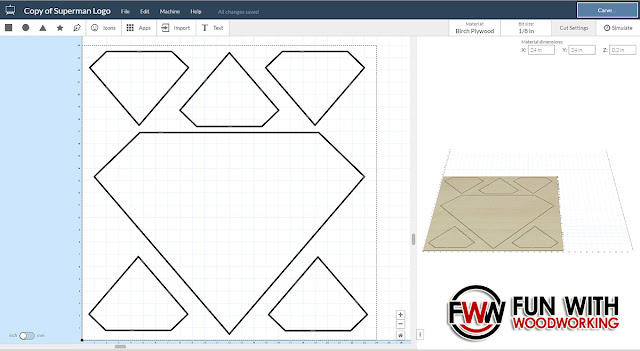

I have an X-Carve CNC machine made by Inventables.  I found a black and white Superman logo on the web and imported it into their free Easel software.  I resized the logo to make 5 – 6″ x 8″ logos and 1 – 16.5″ x 22″ logo.  Make sure to rotate the logos to make them upside down and don’t just flip them on the horizontal axis.  I made 2 copies.  1 with the “S” cutout and 1 without.

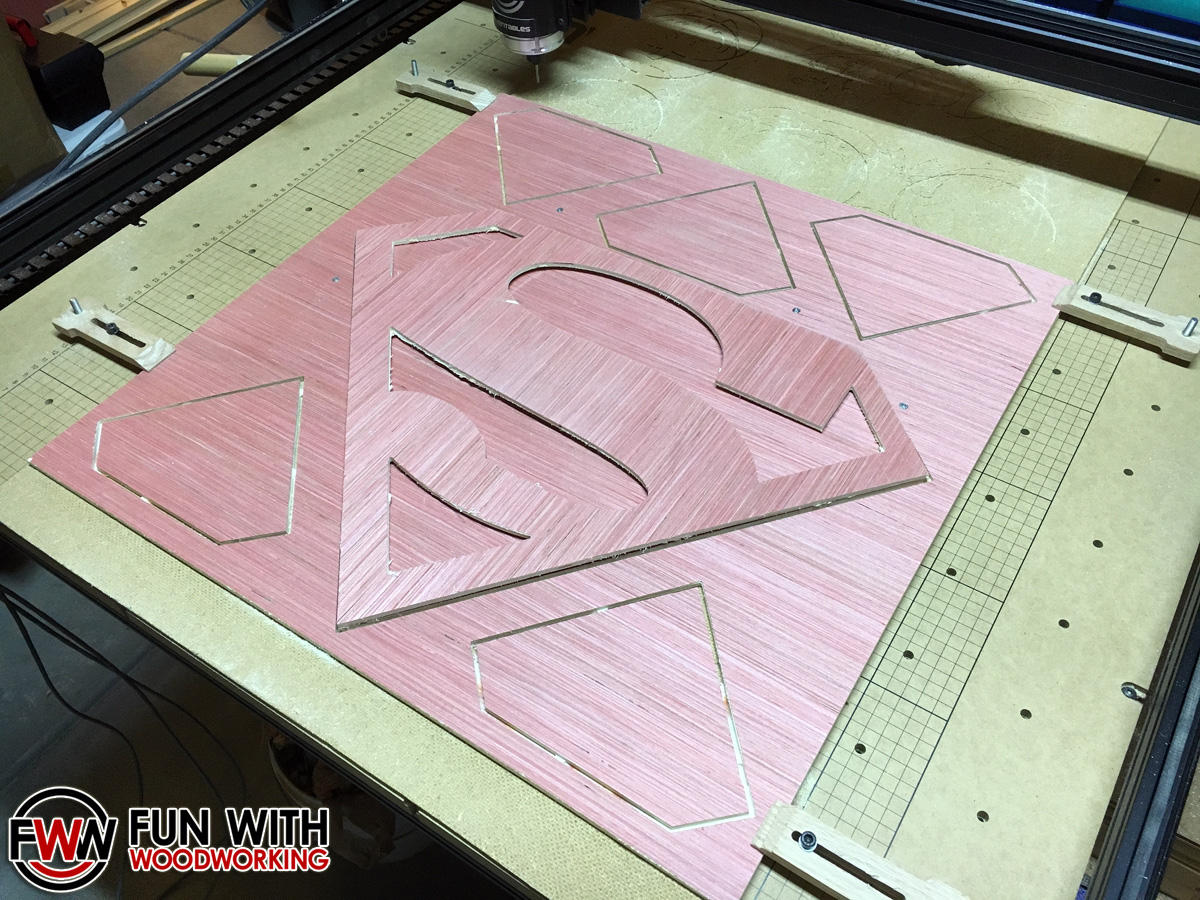

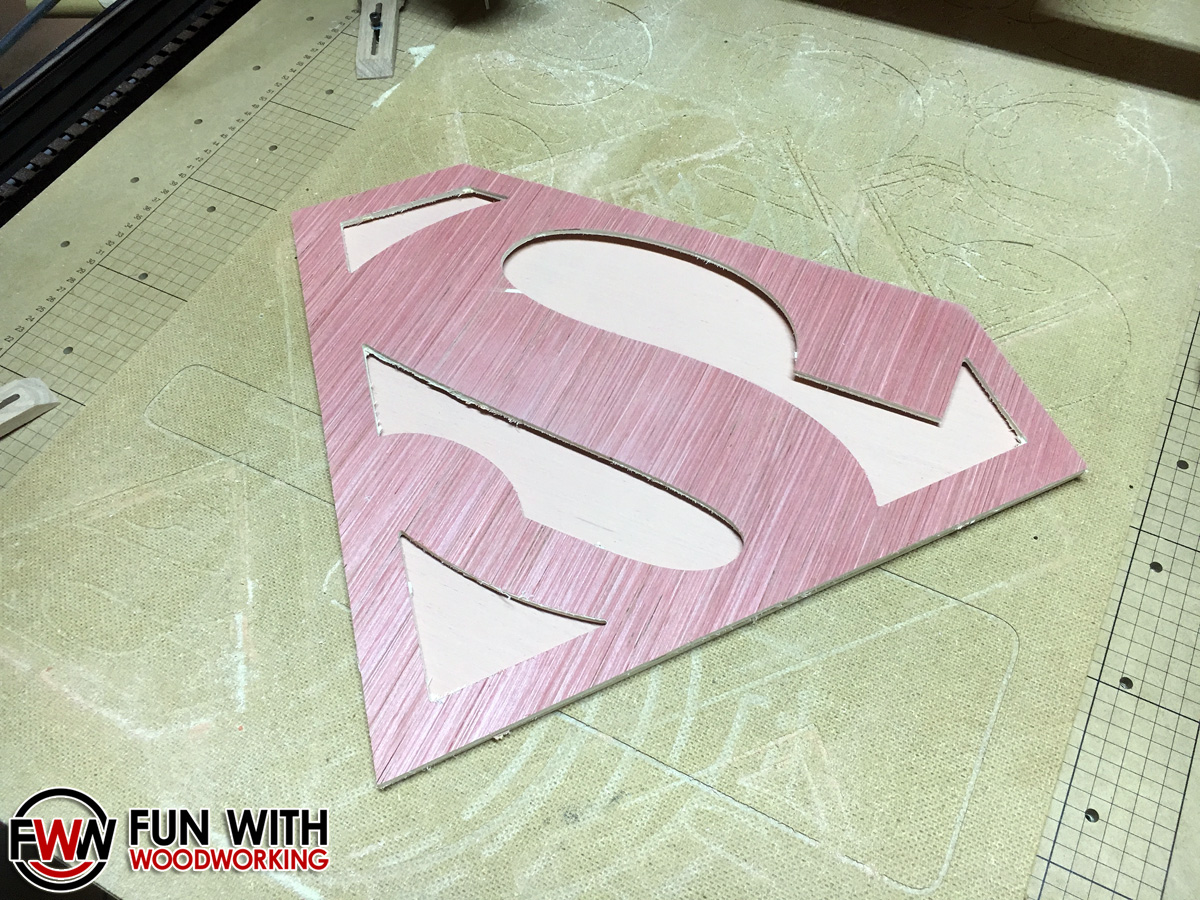

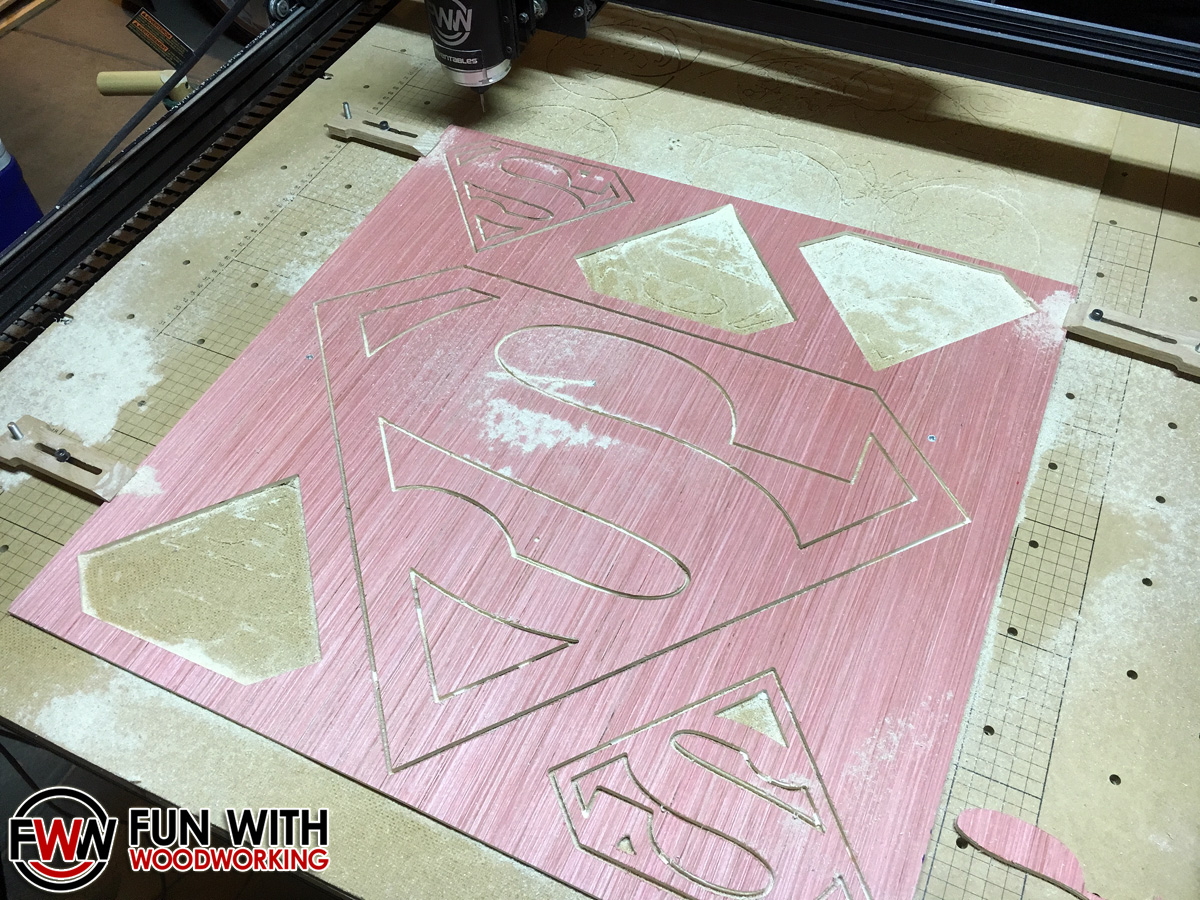

I cutout all the smaller “S” logos first followed by the large one last.  I then cutout all the backer shield pieces in the same manner.

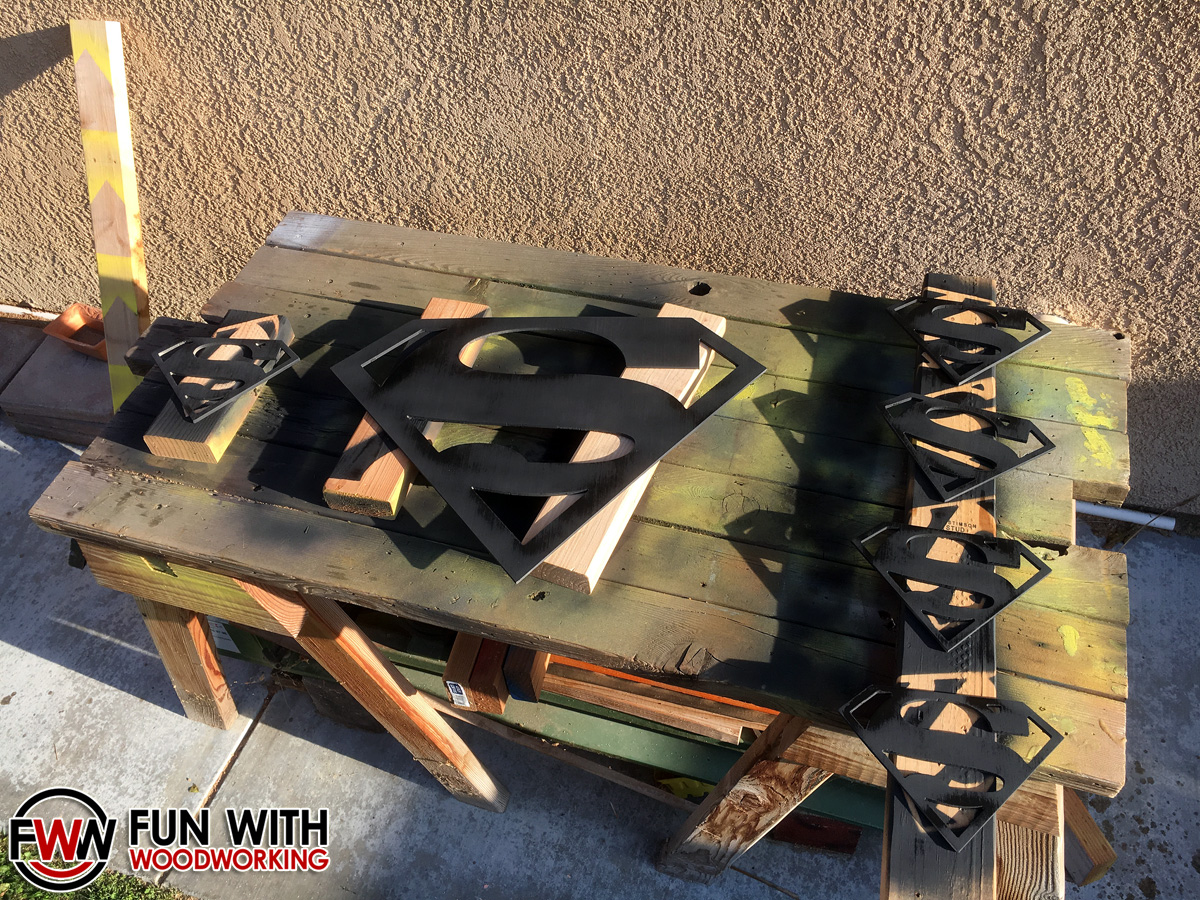

Once everything was cutout I took the backer shield pieces outside and spray painted them a bright yellow.  The paint had a little trouble sticking to the plywood so I sprayed the “S” pieces with a flat black and let it dry for an hour or so.  I then followed that with a coat of bright red.

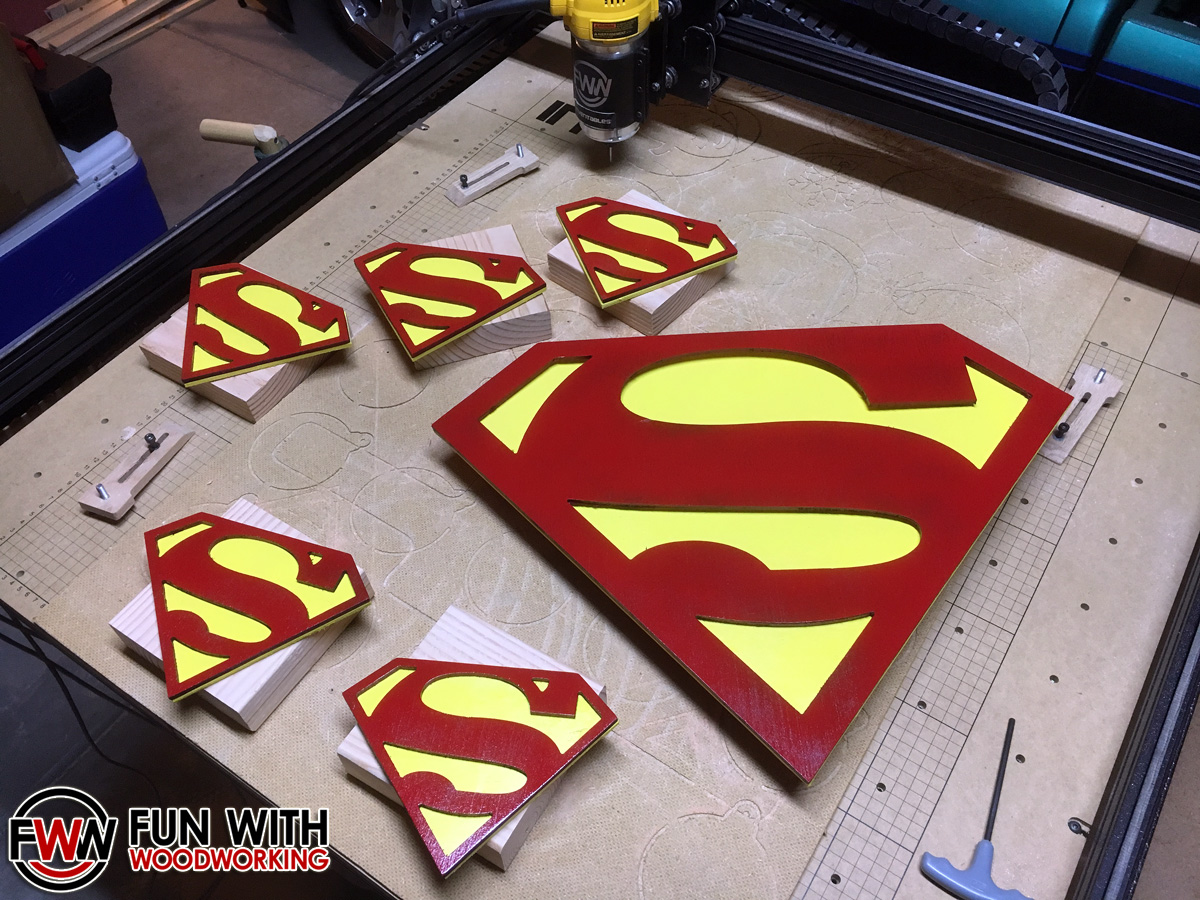

Once everything was completely dry I took them back inside and hot glued them together as it was getting late and the party was going to start soon.  They were a big hit!
